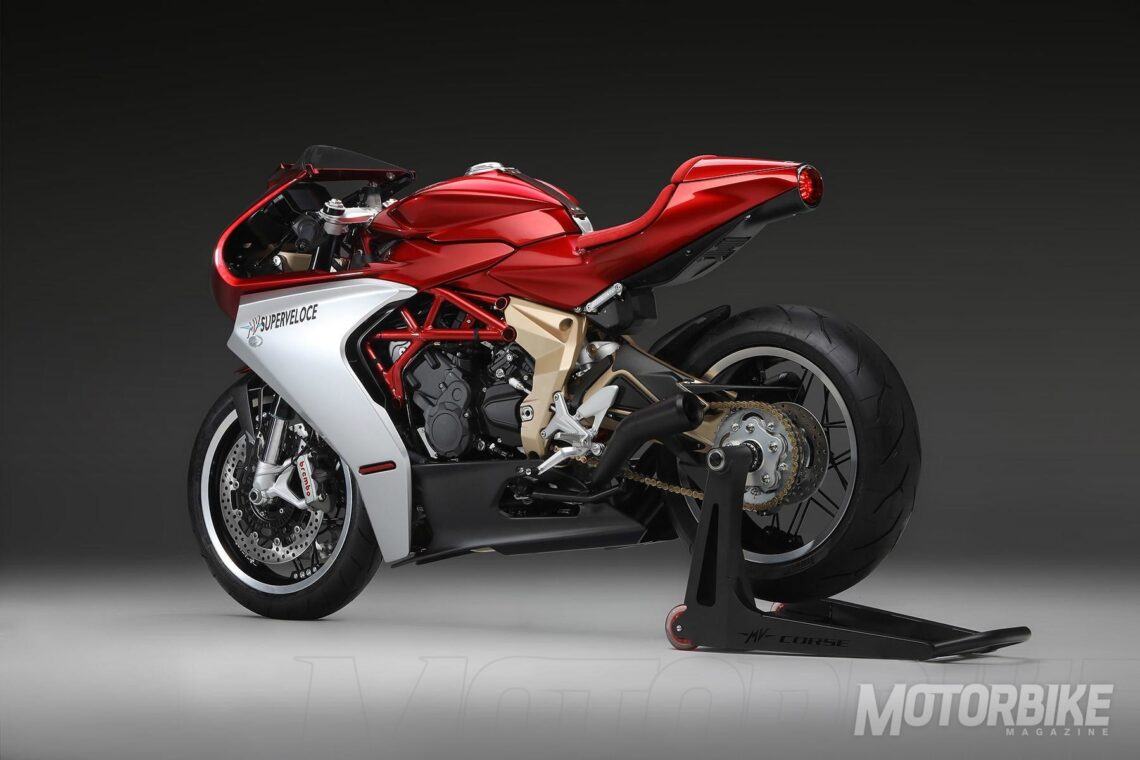

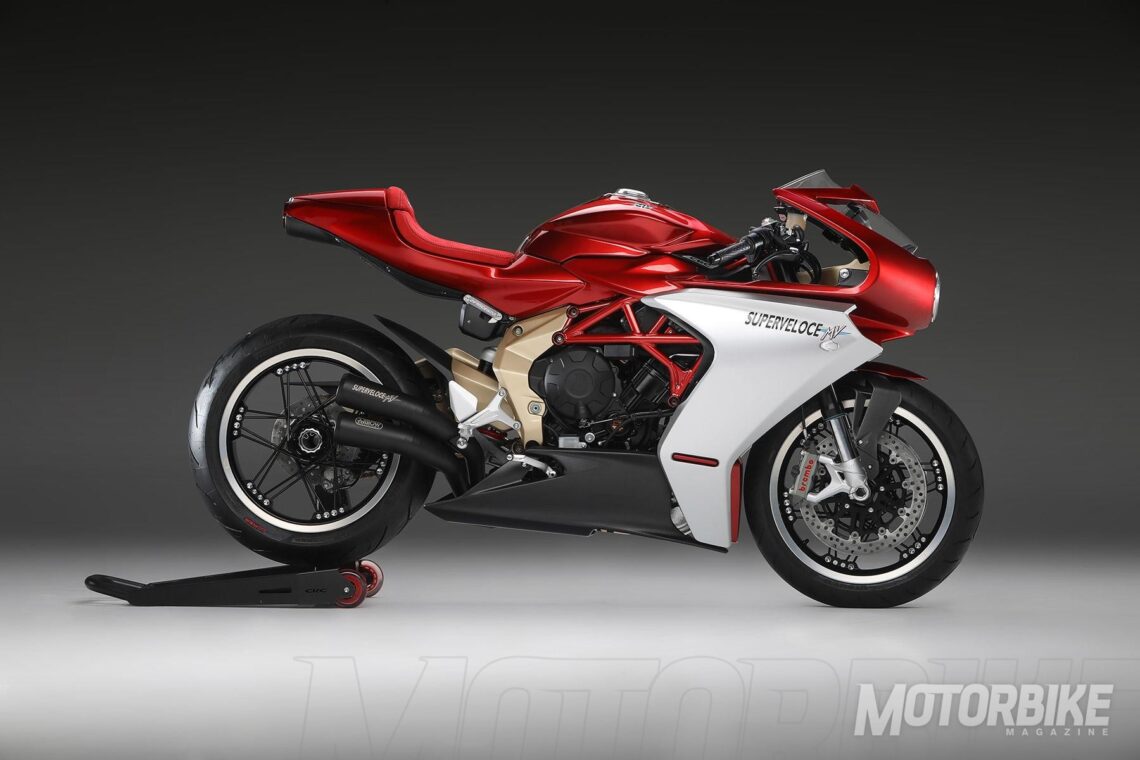

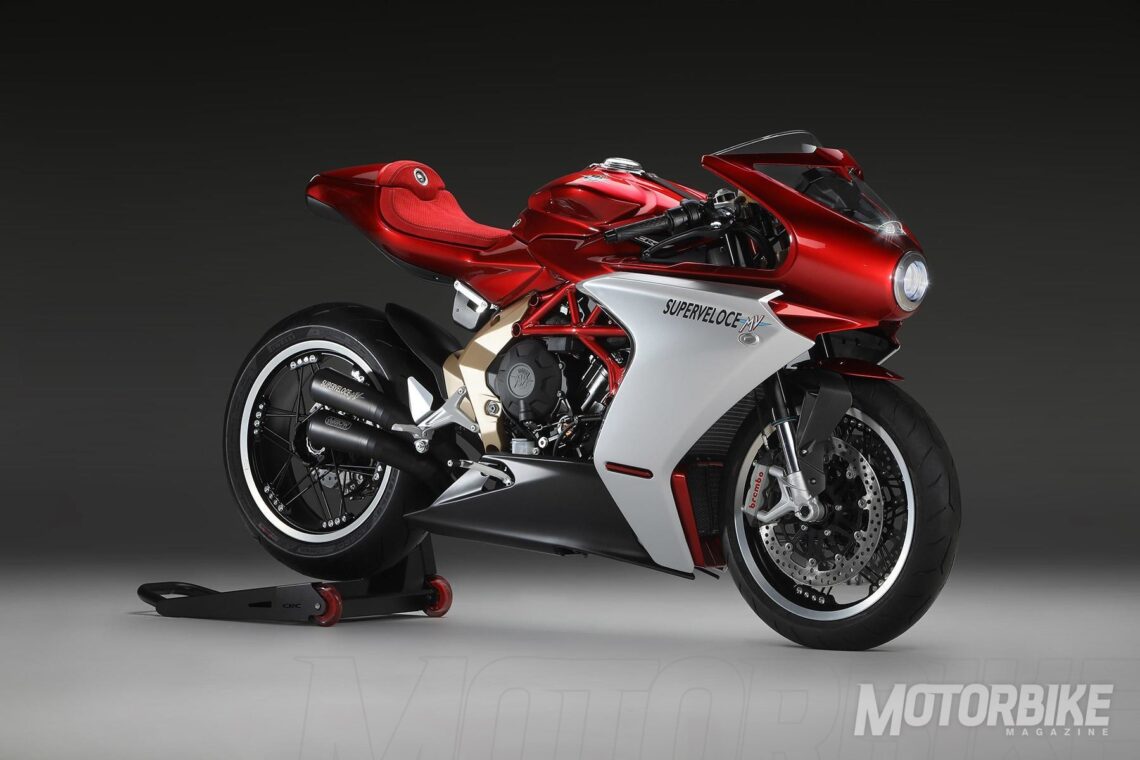

MV Agusta Superveloce 800 Serie Oro 2020

ENGINE
Type Three cylinder, 4 stroke, 12 valve
Timing system “D.O.H.C” with mechanical chain tensioner
Total displacement 798 cm3 (48.7 cu. in.)
Compression ratio 13.3:1
Starting Electric
Bore x stroke 79 mm x 54.3 mm (3.1 in. x 2.1 in.)
Max. power - r.p.m. (at the crankshaft) 108 kW (148 hp) at 13.000 r.p.m.
112,5 kW (153 hp) at 13.250 r.p.m.**
Max. torque - r.p.m. 88 Nm (8.97 kgm) at 10.600 r.p.m.
Cooling system Cooling with separated liquid and oil
radiators
Engine management system Integrated ignition - injection system MVICS
(Motor & Vehicle Integrated Control System) with six injectors Engine control unit Eldor
EM2.0, throttle body full ride by wire
Mikuni, pencil-coil with ion-sensing tech-
nology, control of detonation and misfire Torque control with four maps, Traction
Control with eight levels of intervention
Electronic quick shift MV EAS 2.1 (Electronically Assisted Shift
Up & Down)
Clutch Wet, multi-disc slipper clutch
Transmission Cassette style; six speed, constant mesh
Primary drive 22/41
Gear ratio
First gear: 13/37
Second gear: 16/34
Third gear: 18/32
Fourth gear: 19/30
Fifth gear: 21/30
Sixth gear: 22/29
Final drive ratio 17/43
ELECTRICAL EQUIPMENT
Voltage 12 V
Alternator 350 W at 5000 r.p.m.
Battery 12 V - 8.6 Ah
DIMENSIONS AND WEIGHT
Wheelbase 1380 mm (54.33 in.)
Overall length 2030 mm (79.92 in.)
Overall width 730 mm (28.74 in.)
Saddle height 830 mm (32.68 in.)
Min. ground clearance 120 mm (4.72 in.)
Trail 99 mm (3.89 in.)
Dry weight 173 kg (381.4 lbs.) - 165 kg (363.76 lbs.)**
Fuel tank capacity 16,5 l (4.36 U.S. gal.)
PERFORMANCE
Maximum speed* 240.0 km/h (149.1 mph)
FRAME
Type ALS Steel tubular trellis
Rear swing arm pivot plates material Aluminium alloy
FRONT SUSPENSION
Type Marzocchi “UPSIDE DOWN” telescopic
hydraulic fork with rebound-compression
damping and spring preload external
and separate adjustment
Fork dia. 43 mm (1.69 in.)
Fork travel 125 mm (4.92 in.)
REAR SUSPENSION
Type Progressive Sachs, single shock
absorber with rebound and compression
damping and spring preload adjustment
Single sided swing arm material Aluminium alloy
Wheel travel 123 mm (4.84 in.)
BRAKES
Front brake Double floating disc with Ø 320 mm
(Ø 12.6 in.) diameter, with steel braking disc and flange
Front brake caliper Brembo radial-type monobloc,
with 4 pistons Ø 34 mm (Ø 1.34 in.)
Rear brake Single steel disc with Ø 220 mm (Ø 8.66 in.) dia.
Rear brake caliper Brembo with 2 pistons - Ø 34 mm (Ø 1.34 in.)
ABS System Bosch 9 Plus with Race Mode and
RLM (Rear wheel Lift-up Mitigation)
WHEELS
Front: Material/size With aluminium alloy spokes 3.50 ” x 17 ”
Rear: Material/size With aluminium alloy spokes 5.50 ” x 17 ”
TYRES
Front 120/70 - ZR 17 M/C (58 W) Pirelli Diablo Rosso Corsa II
Rear 180/55 - ZR 17 M/C (73 W) Pirelli Diablo Rosso Corsa II
FAIRING
Material Carbon fiber - thermoplastic
CONTENTS
Titanium components Intake and exhaust valves
Carbon components Rear mudguard - Lower bellypan fairings Tailpiece underside panel - Right and left air duct cover - Screen support - Fairing support - Upper chain guard - Lower
chain guard
CNC components Fuel Cap (with leather strap) - Aluminium front headlight projector ring - Aluminium rear light ring
Exclusive content Racing 3 exit exhaust system + Dedicated maps - Dashboard TFT 5”color display - Cruise control - Bluetooth - GPS - App MVride for
navigation mirroring, app-controlled engine, suspension and rider aids setup - Dedicated motorcycle cover - Alcantara rider and
passanger seat cover - Passenger seat cover Did Gold chain - Tracking and Anti-theft protec-
tion - Certificate of origin - Limited edition
EMISSIONS
Environmental Standard Euro 4
Combined fuel consumption 6.4 l/100 km
CO2 Emissions 157 g/km
