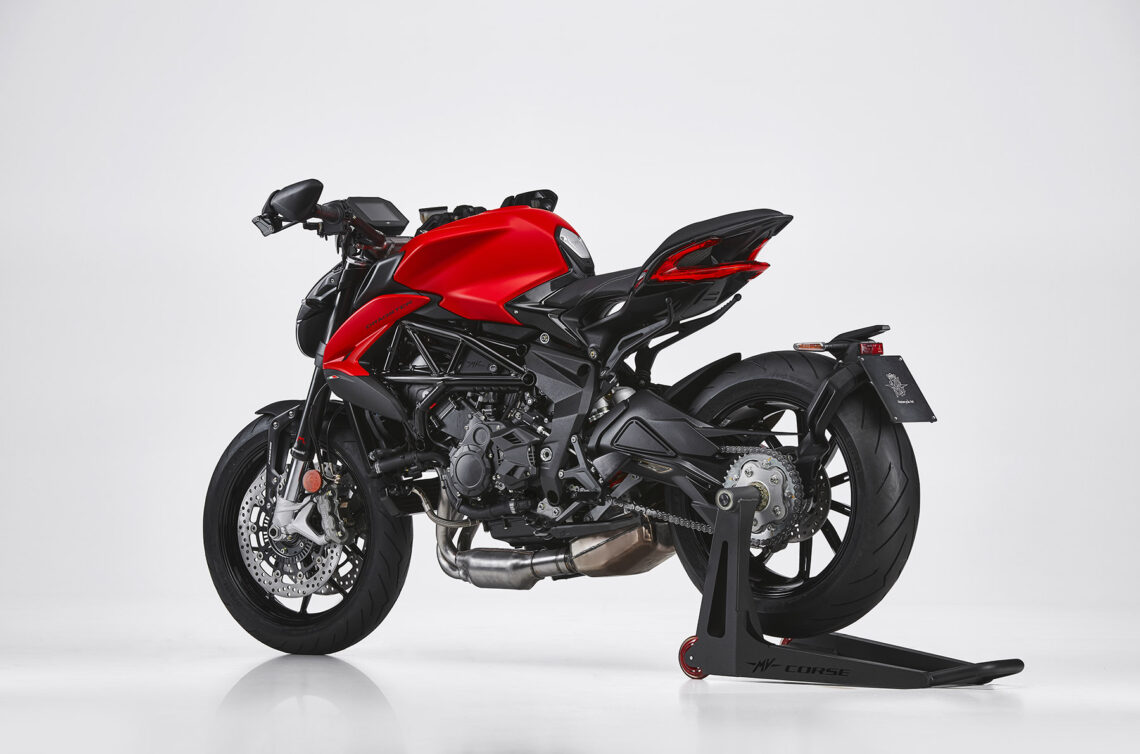

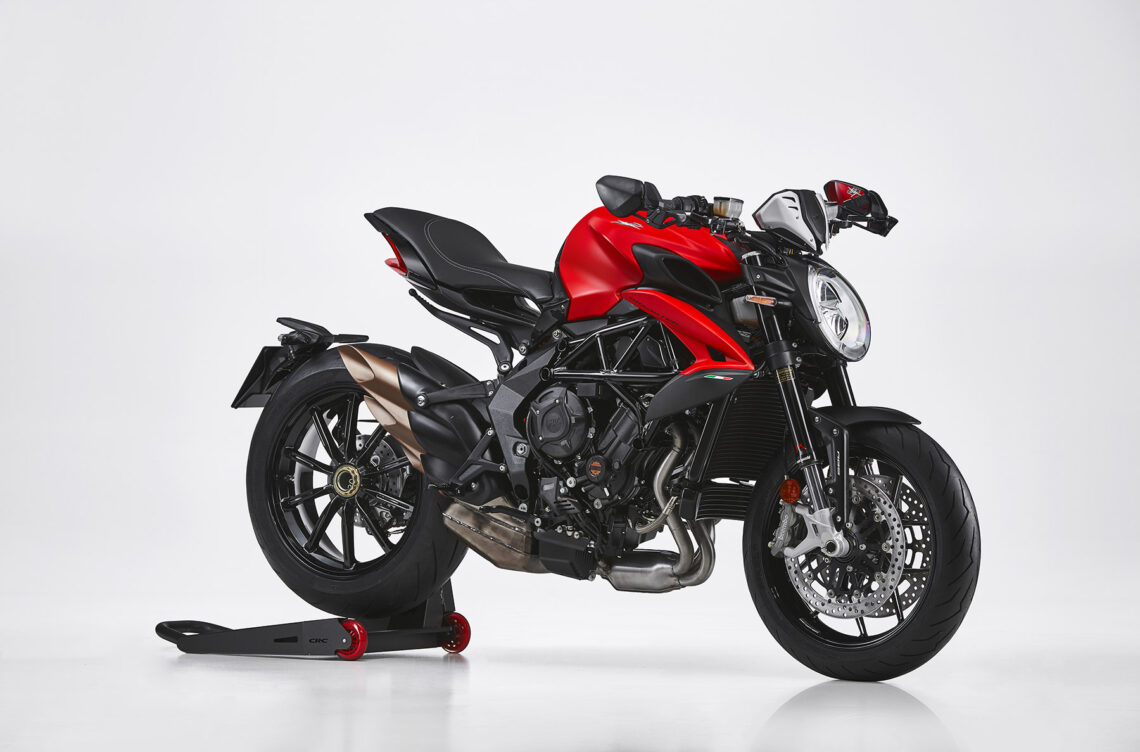

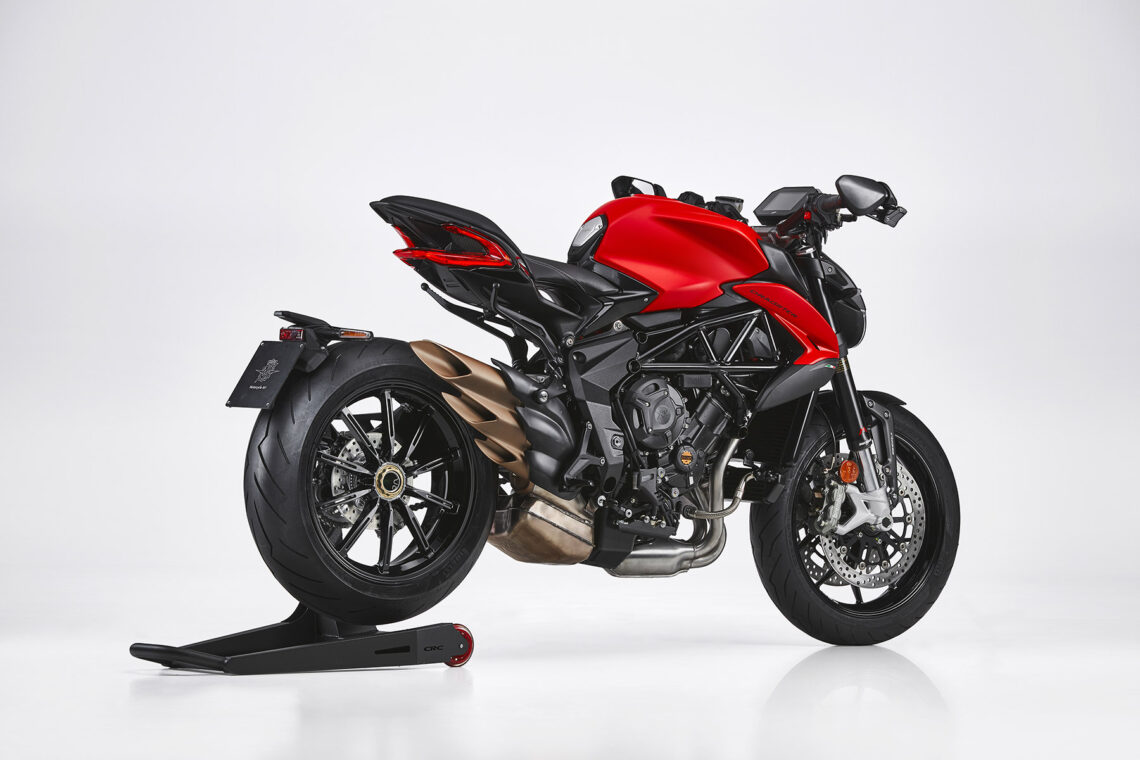

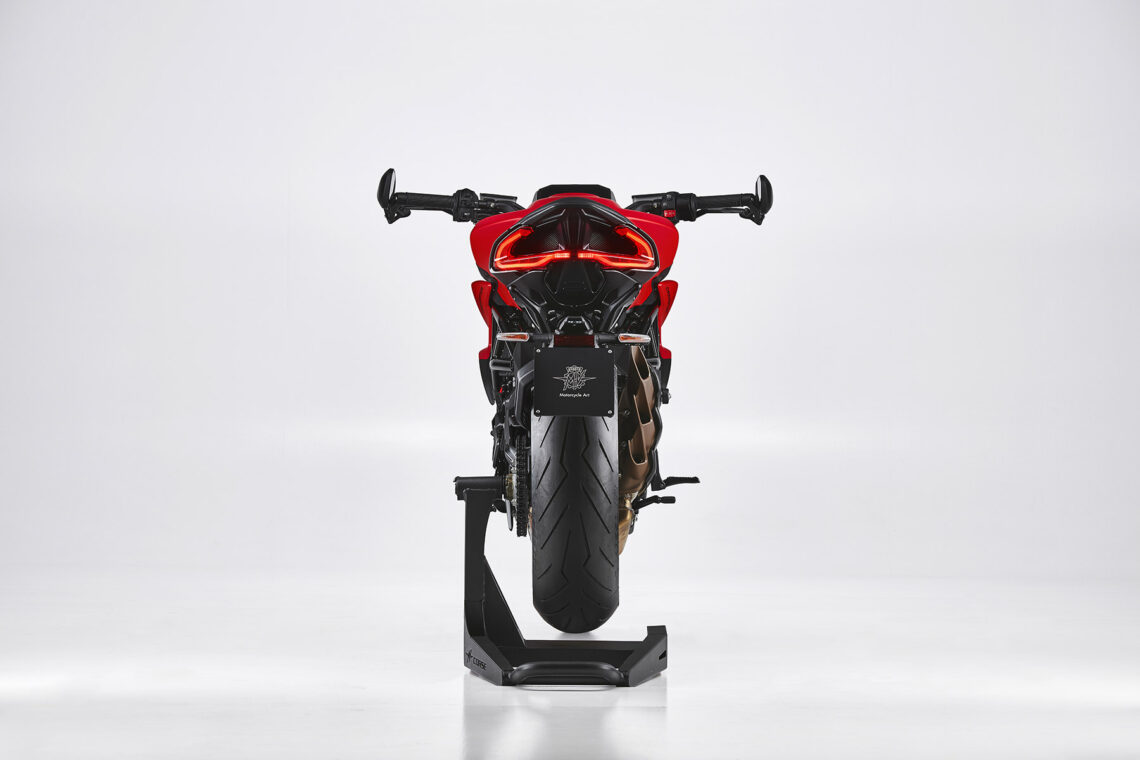

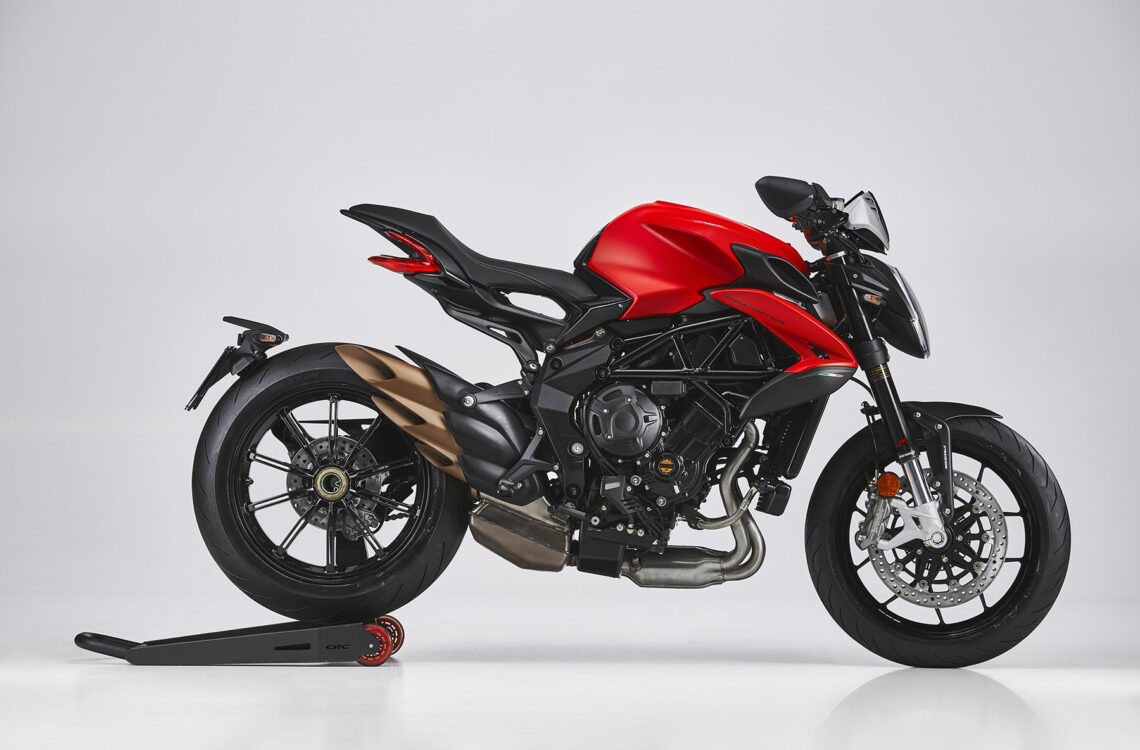

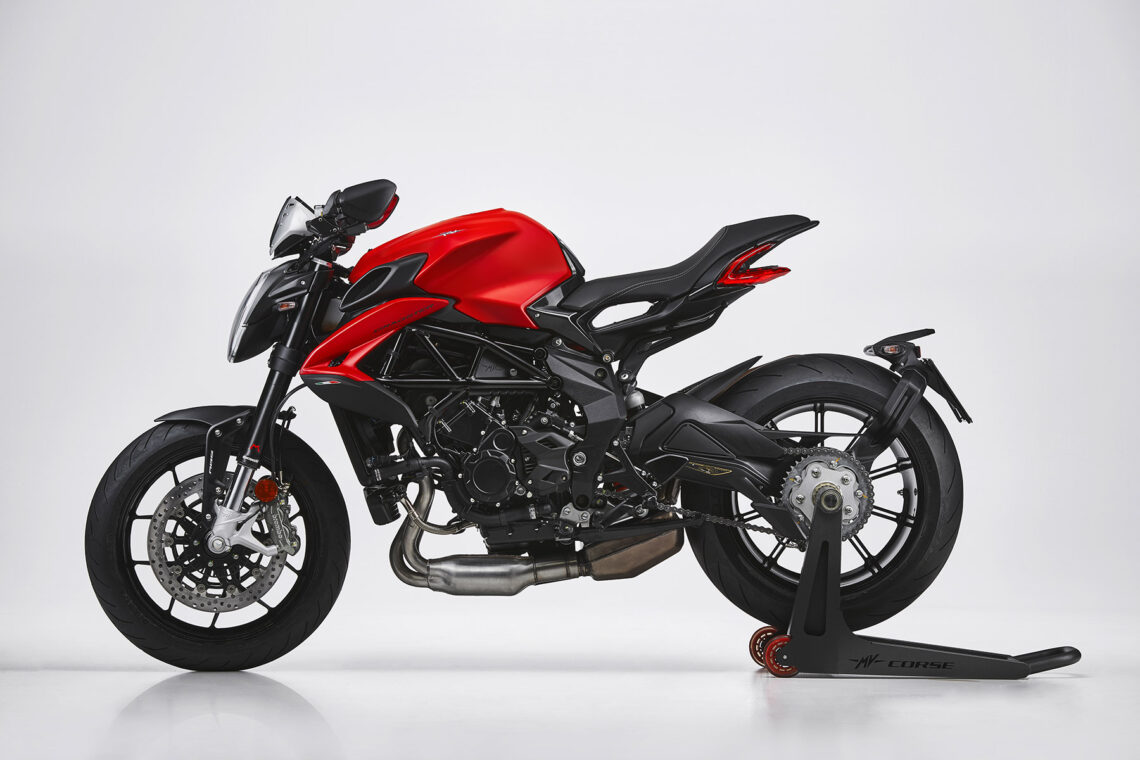

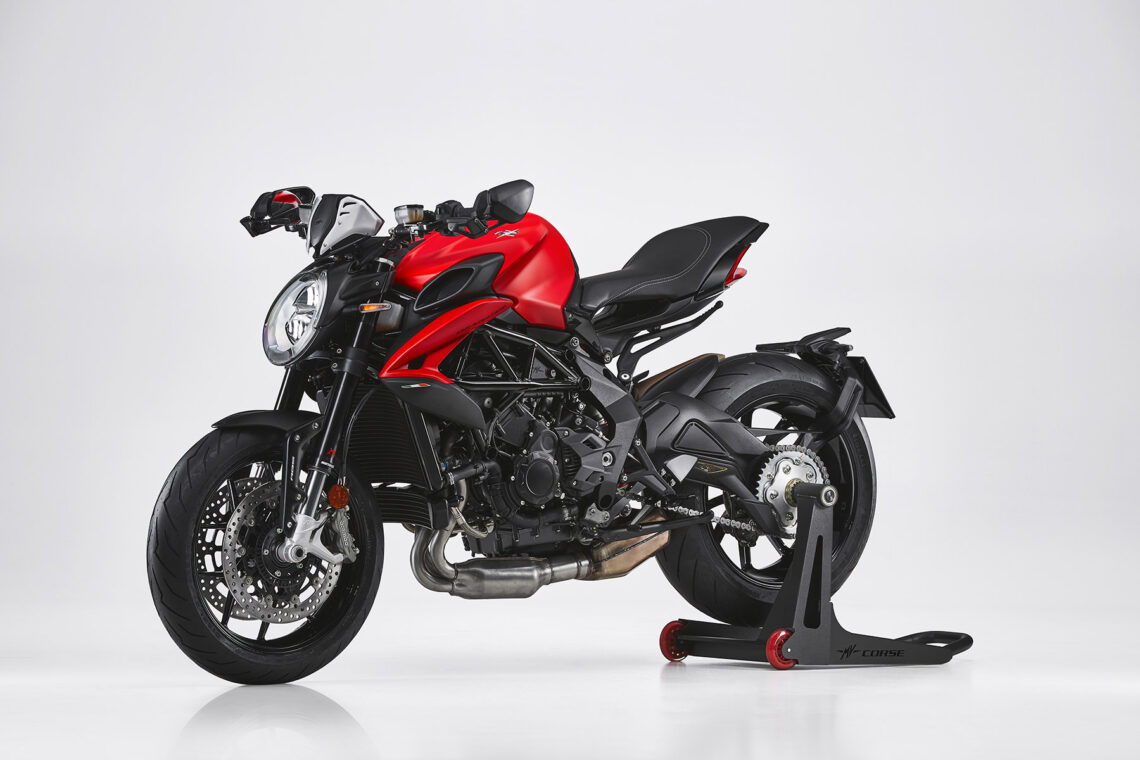

MV Agusta Dragster 800 Rosso 2021

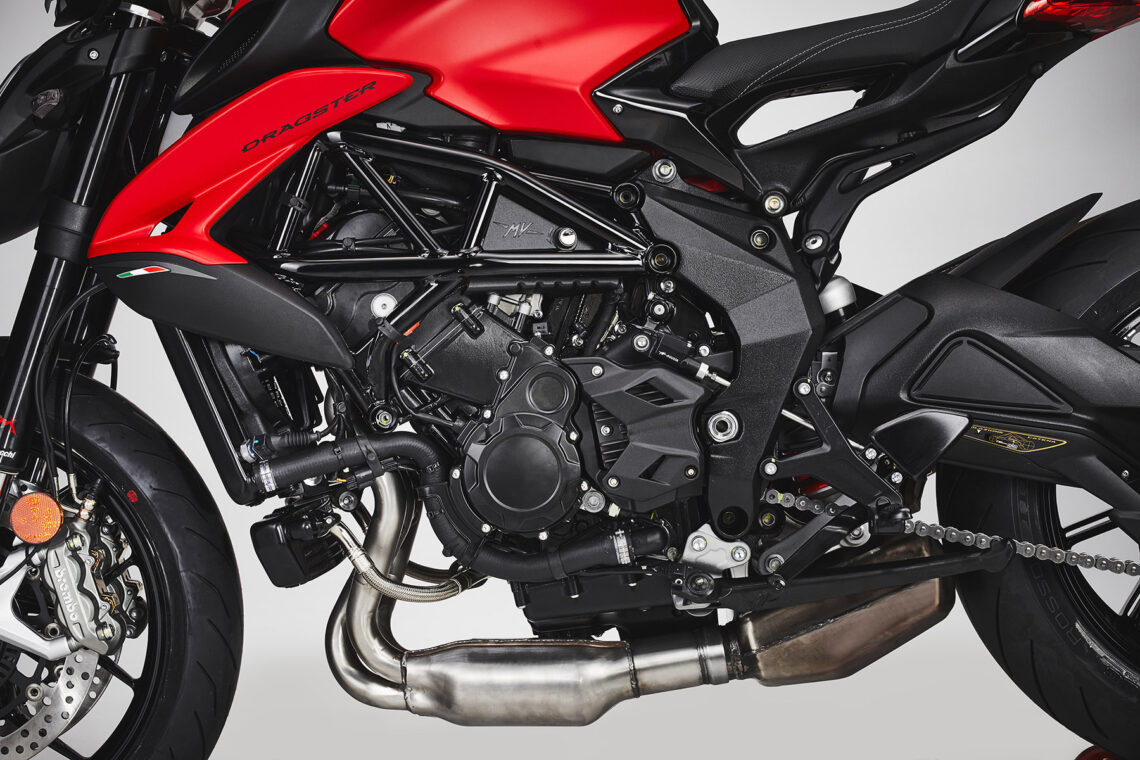

ENGINE
Type Three cylinder, 4 stroke, 12 valve
Timing system “D.O.H.C” with mechanical chain tensioner and DLC tappet
Total displacement 798 cm3 (48.68 cu. in.)
Compression ratio 12.3:1
Starting Electric
Bore x stroke 79 mm x 54.3 mm (3.1 in. x 2.1 in.)
Max. power - r.p.m. (at the crankshaft)** 82 kW (112 hp) at 11.000 r.p.m
Max. torque - r.p.m. 85 Nm (8.67 kgm) at 8.500 r.p.m.
Cooling system Cooling with separeted liquid and oil radiators
Engine management system Integrated ignition - injection system MVICS 2.1 (Motor & Vehicle Integrated Control System) with three injectors. Engine control unit Eldor Nemo 2.1, throttle body full ride by wire Mikuni, pencil-coil.
Torque control with four maps. Traction Control with eight levels of intervention.

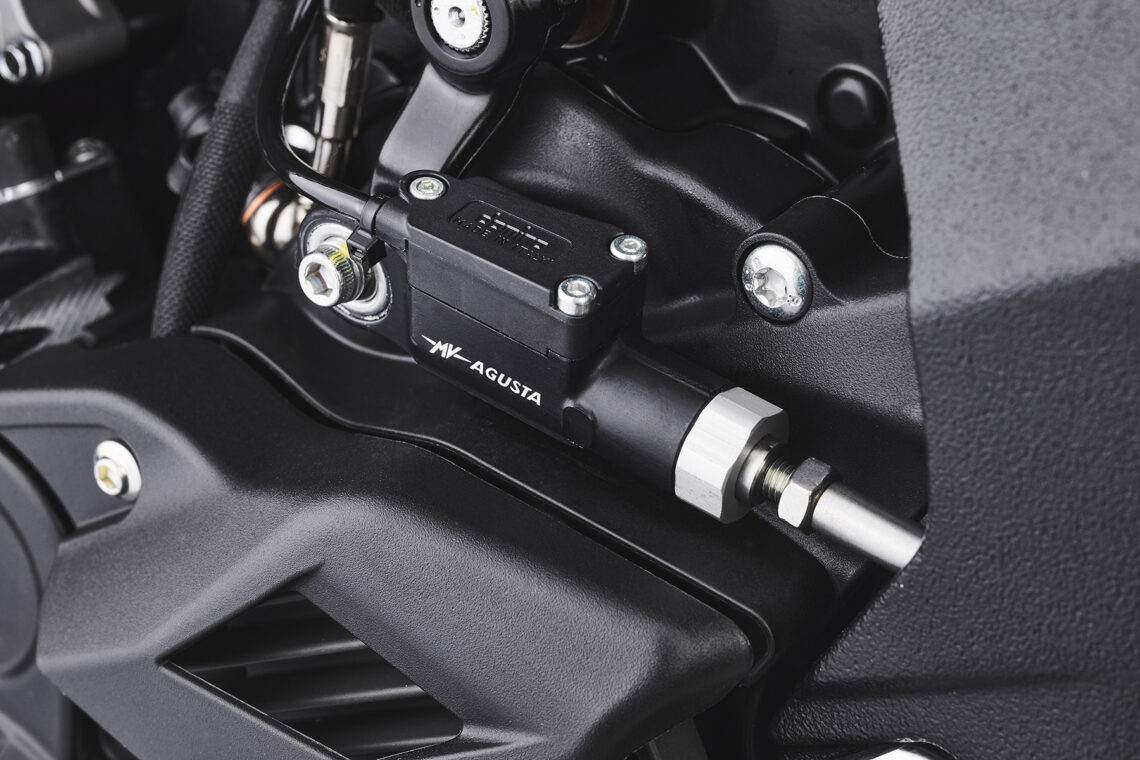

Electronic quick-shift MV EAS 3.0 (Electronically Assisted Shift up & down)
Clutch Multi-disk wet clutch with hydraulic actuation and back torque limiting device
Transmission Cassette style; six speed, constant mesh
Primary drive 22/41
Gear ratio
First gear: 13/37
Second gear: 16/35
Third gear: 18/32
Fourth gear: 20/30
Fifth gear: 22/29
Sixth gear: 21/25
Final drive ratio 16/41
ELECTRICAL EQUIPMENT
Voltage 12 V
Alternator 350 W at 5.000 r.p.m.
Battery 12 V - 8.5 Ah
DIMENSIONS AND WEIGHT
Wheelbase 1.400 mm (55.12 in.)
Overall length 2.035 mm (80.12 in.)
Overall width 935 mm (36.81 in.)

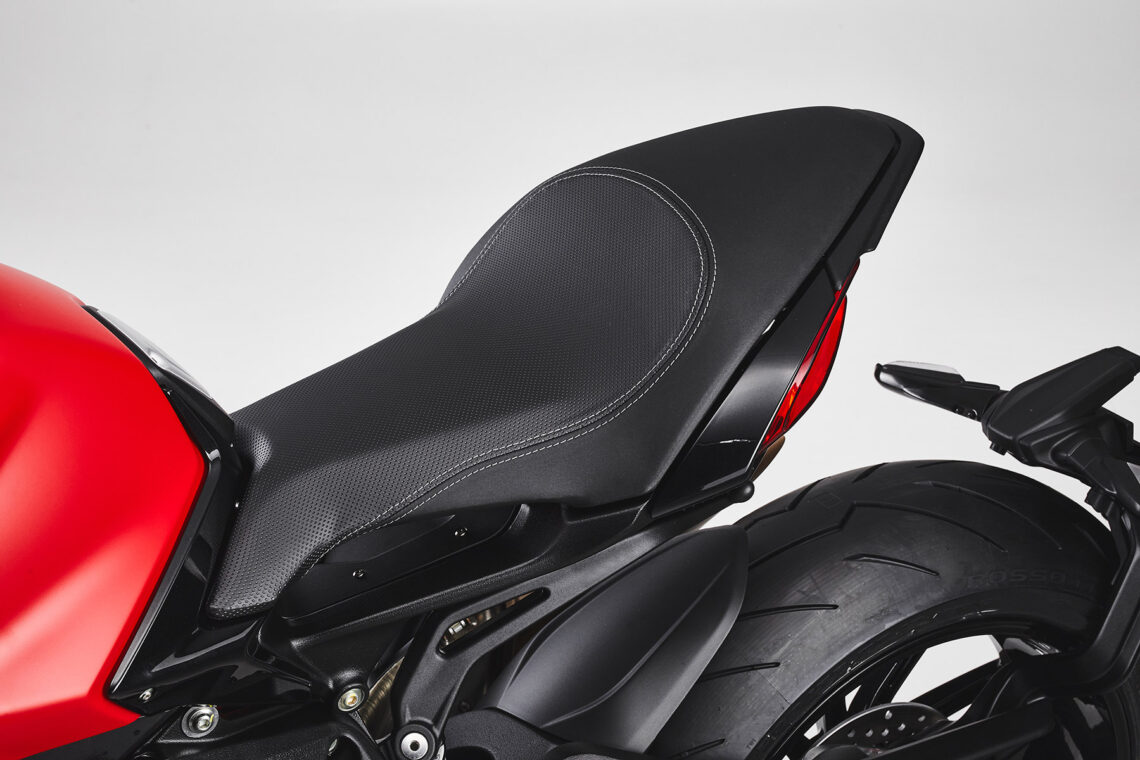

Saddle height 845 mm (33.27in.)
Min. ground clearance 135 mm (5.31 in.)
Trail 103,5 mm (4.07 in.)
Dry weight 175 kg (385.8 lbs.)

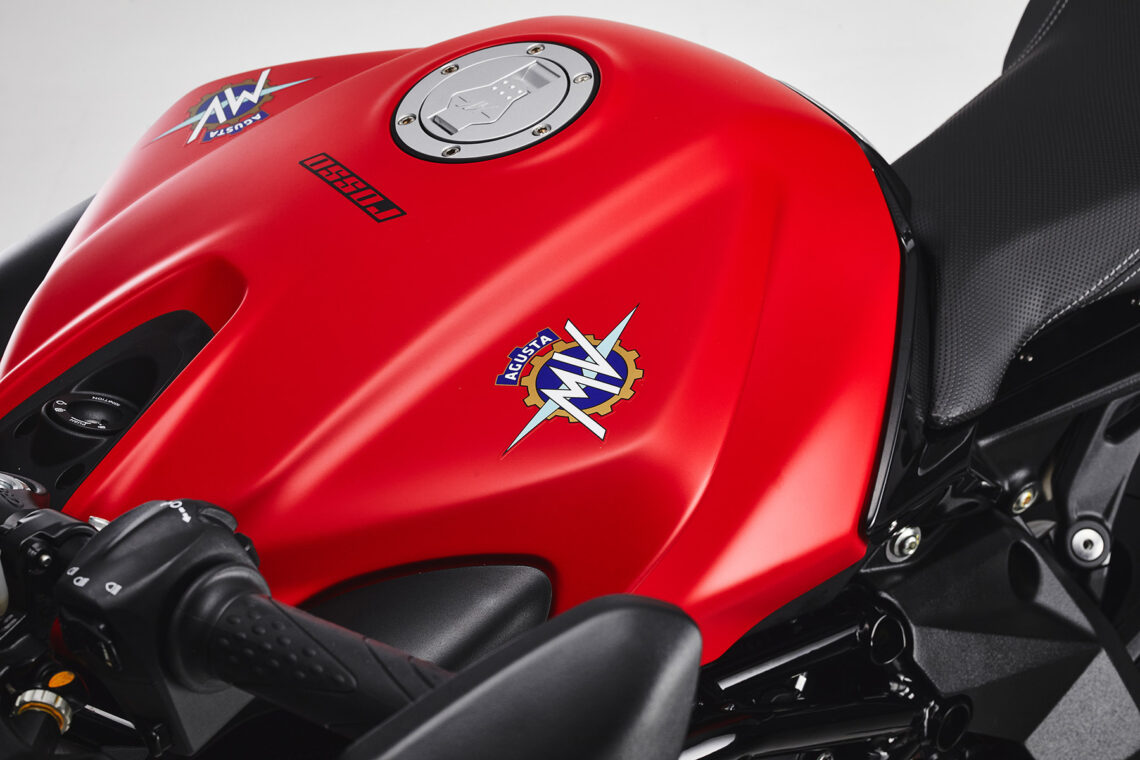

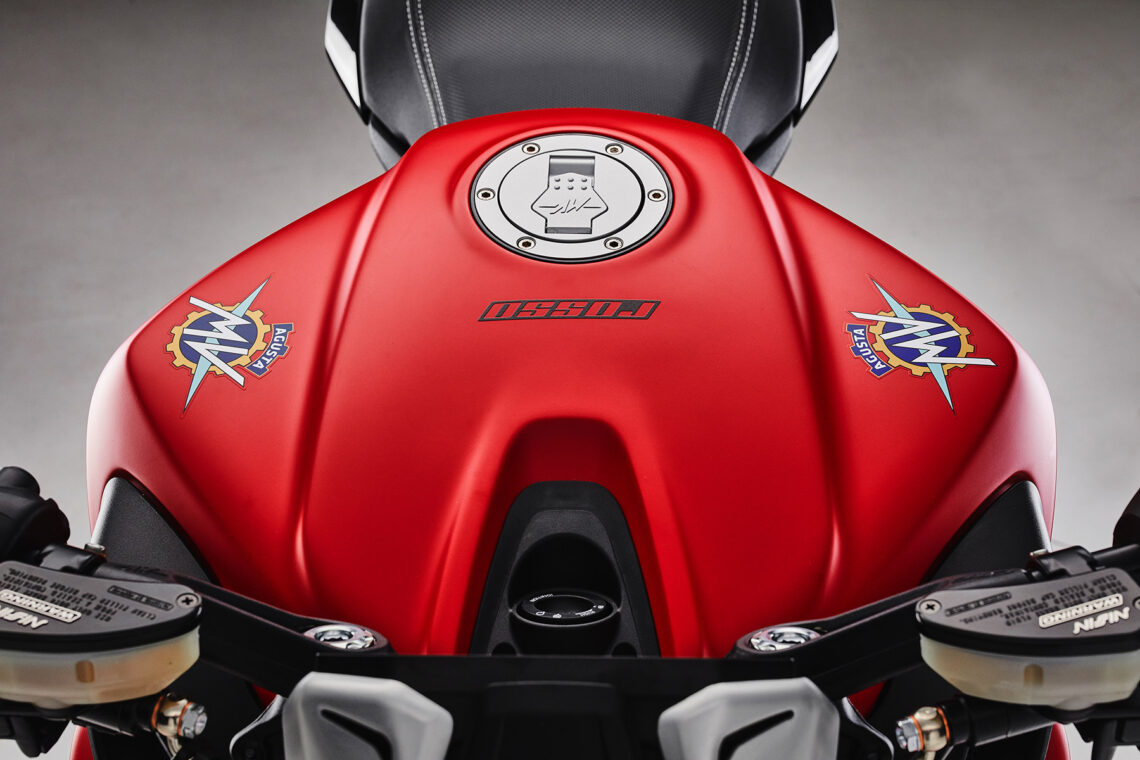

Fuel tank capacity 16.5 l (4.36 U.S. gal.)
PERFORMANCE
Maximum speed* 237.0 km/h (147.2 mph)

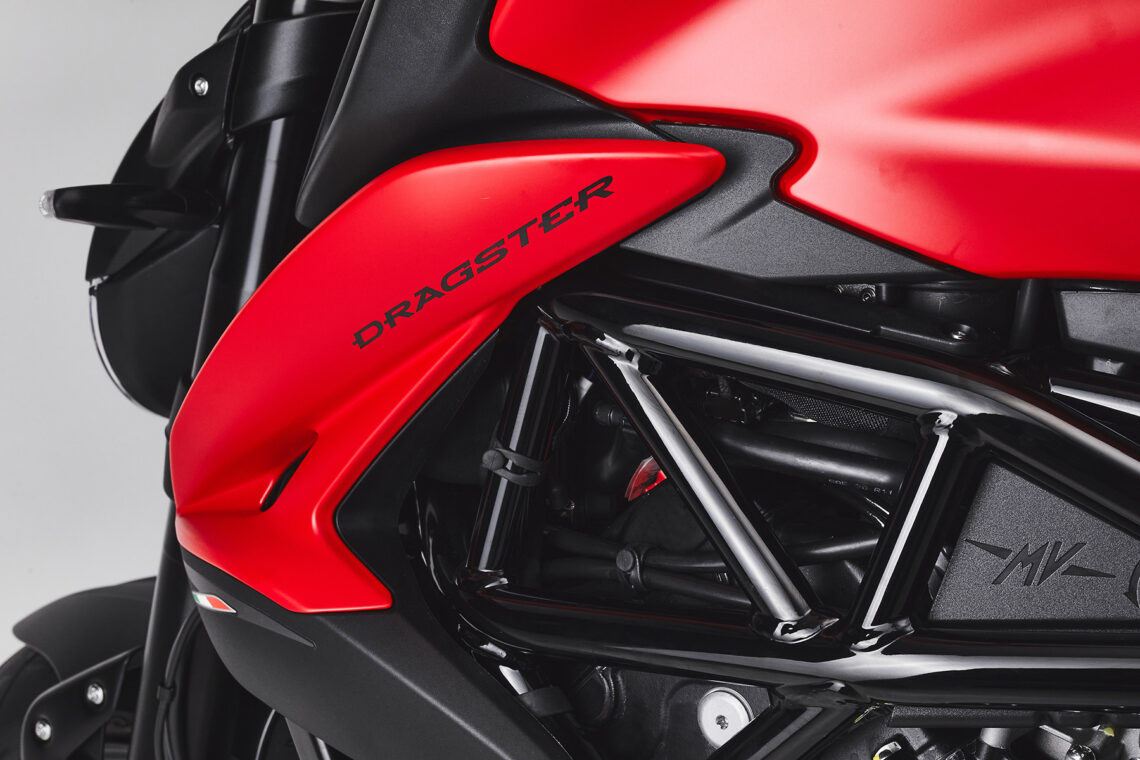

FRAME

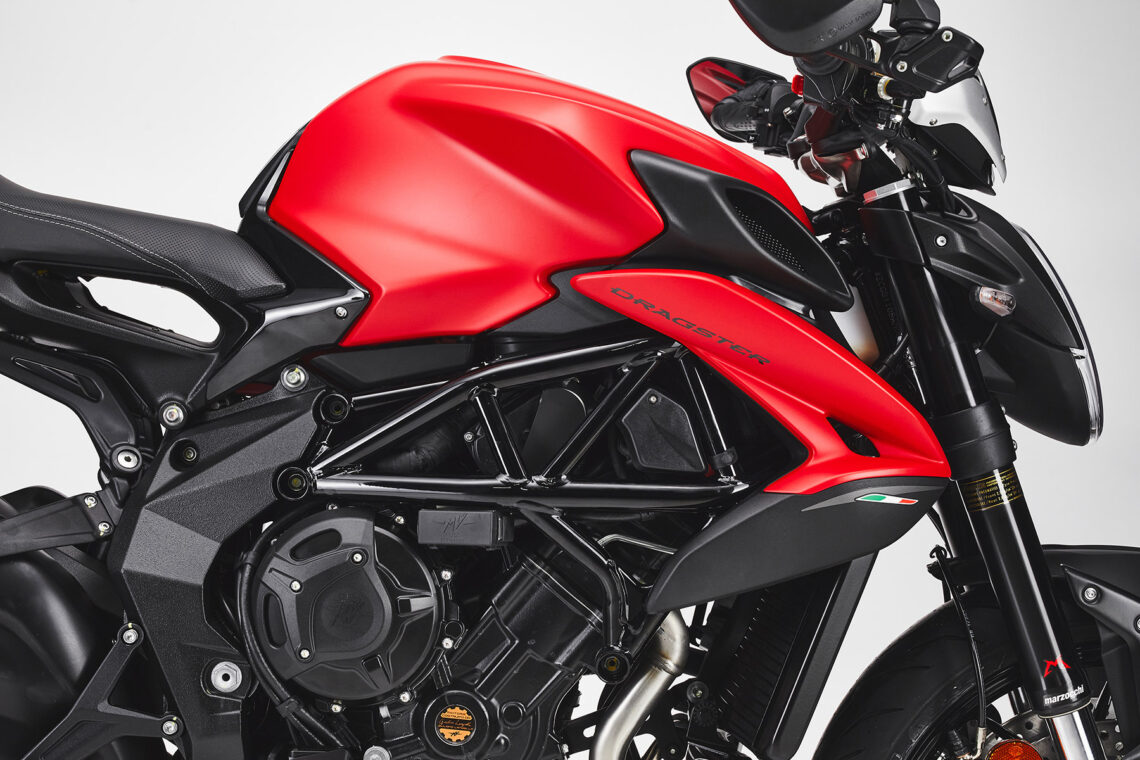

Type ALS Steel tubular trellis
Rear swing arm pivot plates material Aluminium alloy

FRONT SUSPENSION
Type Marzocchi “UPSIDE DOWN” telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment
Fork dia. 43 mm (1.69 in.)
Fork travel 125 mm (4.92 in.)

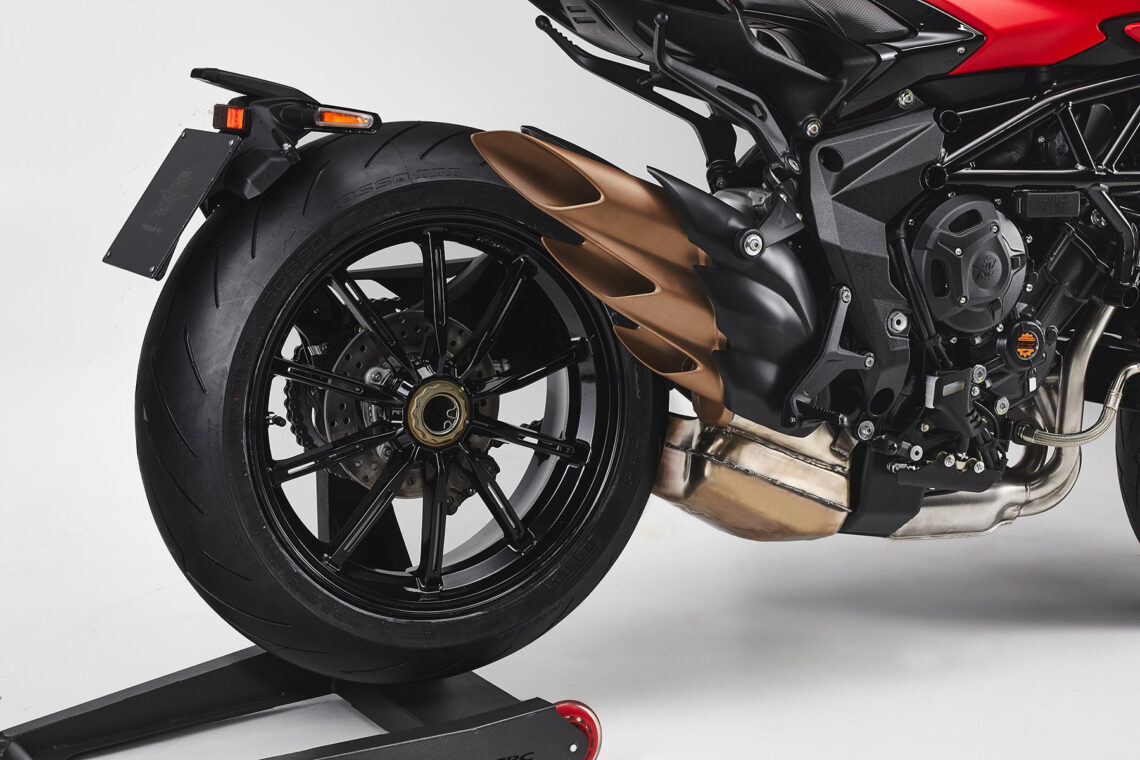

REAR SUSPENSION

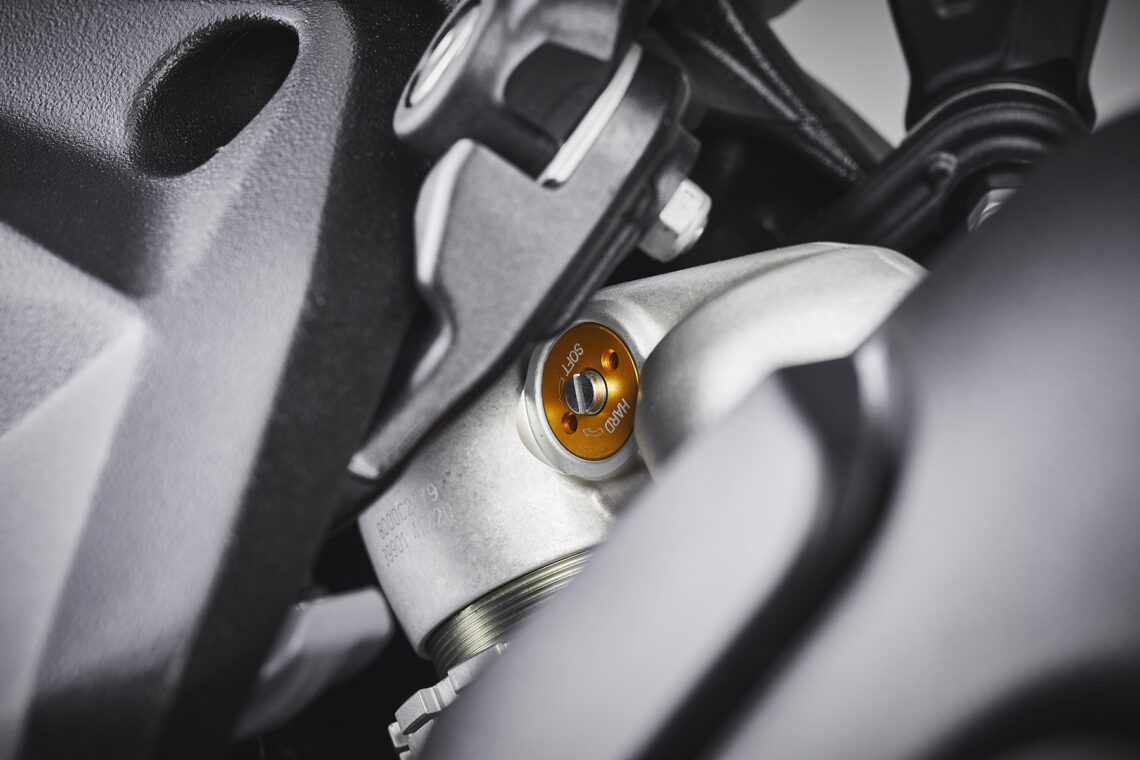

Type Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment
Single sided swing arm material Aluminium alloy
Wheel travel 130 mm (5.12 in.)
BRAKES

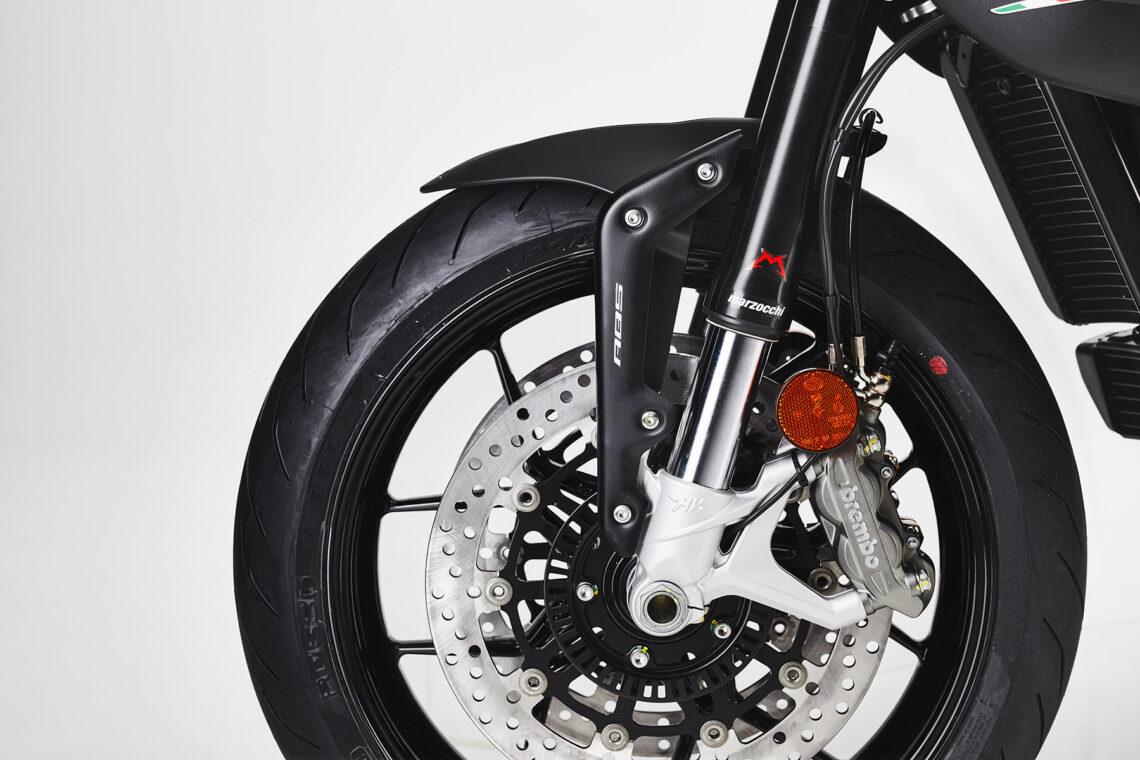

Front brake Double floating disc with Ø 320 mm (Ø 12.6 in.) diameter, with steel braking disc and flange
Front brake caliper Brembo radial-type, with 4 pistons Ø 32 mm (Ø 1.26 in.)
Rear brake Single steel disc with Ø 220 mm (Ø 8.66 in.) dia.
Rear brake caliper Brembo with 2 pistons - Ø 34 mm (Ø 1.34 in.)
ABS System Continental MK100 with RLM (Rear Wheel Lift-up Mitigation) and with cornering function
WHEELS
Front: Material/size Aluminium alloy 3.50 ” x 17 ”
Rear: Material/size Aluminium alloy 6.00 ” x 17 ”
TYRES
Front 120/70 - ZR 17 M/C (58 W)
Rear 200/55 - ZR 17 M/C (78 W)
FAIRING
Material Thermoplastic
CONTENTS
Exclusive contents MV Ride App - GPS sensor - Bluetooth - Cruise control
OPTIONAL
The full Special Parts range is available on the MV Agusta website
EMISSIONS
Environmental Standard Euro 5
Combined fuel consumption 5.1 l/100 km
CO2 Emissions 117 g/km
